How to Install the Rear Camera?
0 out of 0 found this helpful
- Use the extension cable to connect the rear camera to the dashcam.

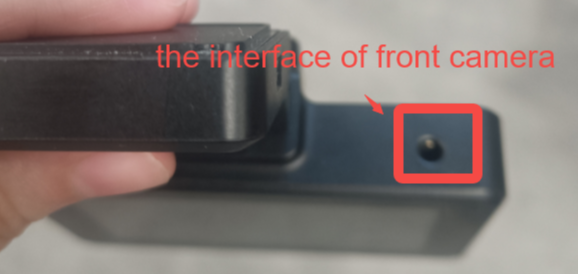

Please pay attention to the connection between the extension cable and the rear camera and the interface between the extension cable and the front camera to connect correctly.
- You can install the rear camera in the following two positions:

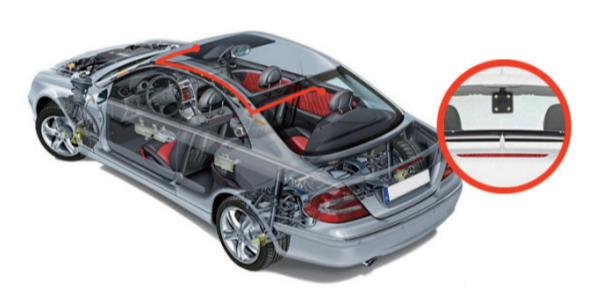

(1) Install the rear camera on the rear windshield of the car.

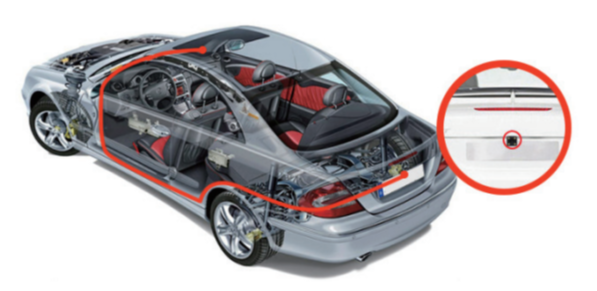

(2) Install the rear camera near the license plate of the car. This mounting location is recommended because the rear image is clear and sharp, both as a rearview mirror and as a back-up camera.
Note:
Before install, clean the mounting area to ensure optimal adhesion.
Position (1): Clean the rear windshield regularly to ensure image quality.
Position (2): Mount the rear camera using the included double-sided adhesive stickers or screws.
